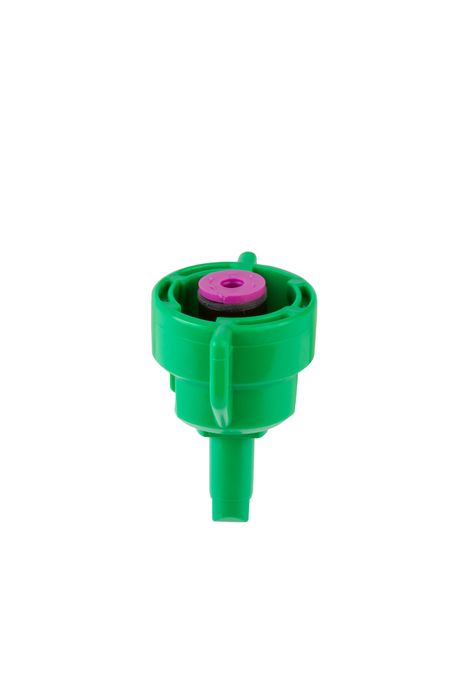

ExRay XC - 90% DRT Low Drift Nozzles
)
)
)
)
)
)
How they work
ExRay XC nozzle features an extra, variable, pre-orifice to achieve
the “Extended Range” of output, simply by varying the operating
pressure. Incorporating Air Induction technology, the number of driftable droplets generated is minimised allowing up to 90% drift
reduction to be achieved, even at practical working pressures (2 to 3 bar).
Full CRD approval and listing on their Equipment register, these were the first 4* nozzles to achieve a LERAP 4* rating.
ExRay XC nozzles are supplied ready-made up with three component parts, plus a standard ISO 8mm cap and will
fit any nozzle body that accepts nozzle filters.
The ExRay XC valve and cap assembly replaces the standard
cap seal and the nozzle is fitted into the cap in the normal way.
Use the Exray XC nozzles at 70cm above the target for optimal
spray coverage and results.
